Agricultural Line

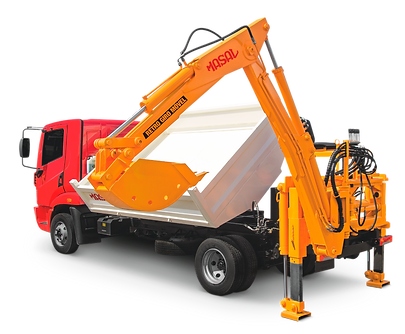

Retro Giro Mobile with
Tipper body
Agricultural Line
This equipment with 420º rotation was developed to meet the demand of rural areas. It is suitable for building ditches on rural roads, culverts, bridges and other services in the settlements in support of agricultural activities.
The Retro set with a 3/4 truck with tipper body makes it possible for Retro to transport, load and unload gravel, sand and bulk materials in a single vehicle.
Features:
Tipper-type body, made of thin cold steel sheets, for both sides of the truck. Activation through hydraulic cylinder, with locks on the sides, with the remaining length of the chassis between the vehicle cabin and equipment (middle) around 4,000 mm (maximum) according to the vehicle's wheelbase and PBT.
Maximum load capacity of 2,500 kg with a side height of 450 mm,
in cold thin sheet metal and with removable side covers. Has fenders
in steel and rubber clay trimmer.
Accompanies reflective strips according to Inmetro standard.
Especificações Técnicas | Info |
|---|---|
Profundidade máxima de escavação | 2,40 m |
Altura máxima de descarga | 3,70 m |
Distância do centro de giro ao extremo dos dentes da caçamba | 4,70 m |
Capacidade da caçamba standard | 93 L |
Força de escavação | 2.500 Kgf |
Volume possível de escavação da amplitude máxima a 180º | 45 m³ |
Rendimento do trabalho de escavação | 20 m³/h |
Ângulo de giro da concha | 108º |
Ângulo de giro | 420º |
Peso do equipamento | 1.460 Kg |
Estabilizadores | 02 |
Número de cilindros hidráulicos | 07 |
Capacidade do reservatório hidráulico | 60L |
Pressão de trabalho | 175bar |
Vazão de trabalho | 72 Ipm |
Capacidade do veículo para instalação superior a | 4,00 t |
